Description
Order quantity: In measures of 1.0 running meters. This product is cut off according to your specifications, a return or revocation are not possible. Request a free sample before an order.
Grounding: Electrically conductive. Can be contacted and grounded to shield electric fields (LF). Please find corresponding components under “Grounding”. A recommendation here is difficult because this depends on the application. Please ask us!
Fabric care: Washing at gentle cycle 30°C | Ironing without steam at degree 1 | No drying in tumble dryers | No bleaching | No chemical dry-cleaning | For allergy sufferers: Every new fabric smells, wash before its first usage!
Application: Grounding, Earthing, Reduction of LF fields
Field type: LF (Low frequency alternating electrical fields)
Ecology: Very high
Color: White

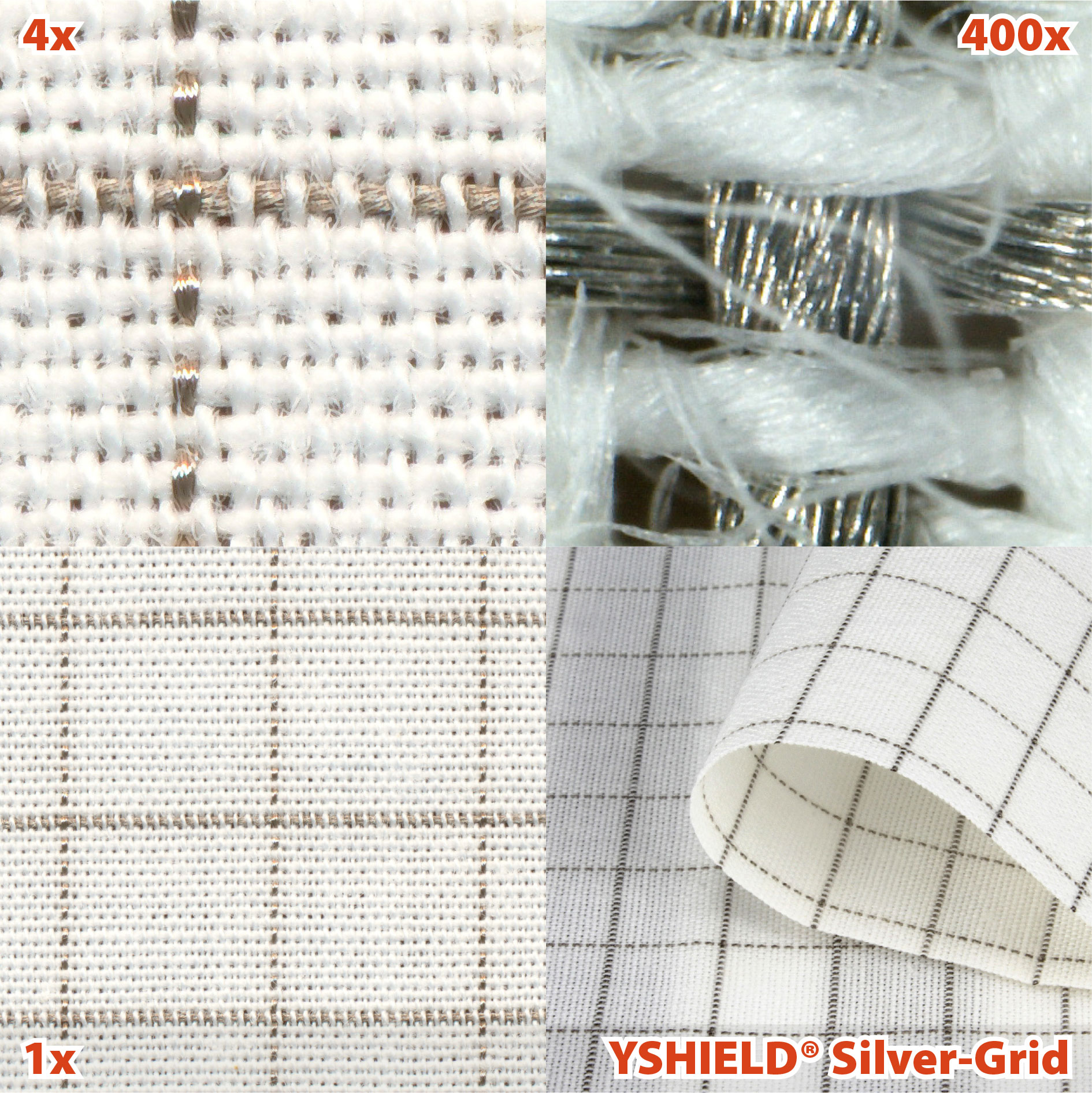

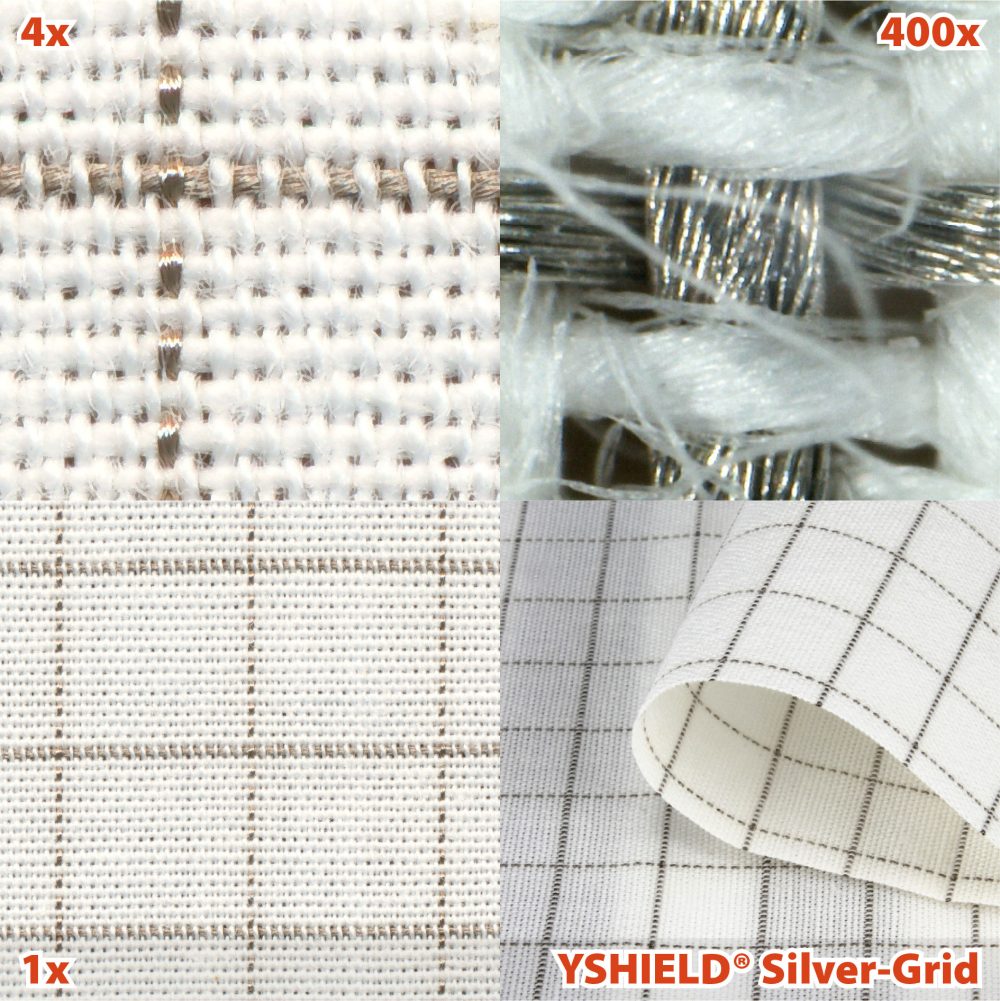

SILVER-GRID is a cotton fabric with a silver thread for the shielding of low-frequency electric fields (LF). The perfect fabric for groundable products, so-called “Earthing”. For bedding, ticks, sheets, chair or floor underlays, etc.. With just 13 dB HF attenuation only limited suitable for HF shielding. Compared to a competitor product, SILVER-GRID has a tigher silver-mesh with a lower resistance for better grounding.
- Textile characteristics: Washable, easy to iron and process
- Quality grade: Very high
Technical data
- Width: 150 cm, +/- 2 cm
- Length: Available by the meter
- Attenuation LF: 40 dB

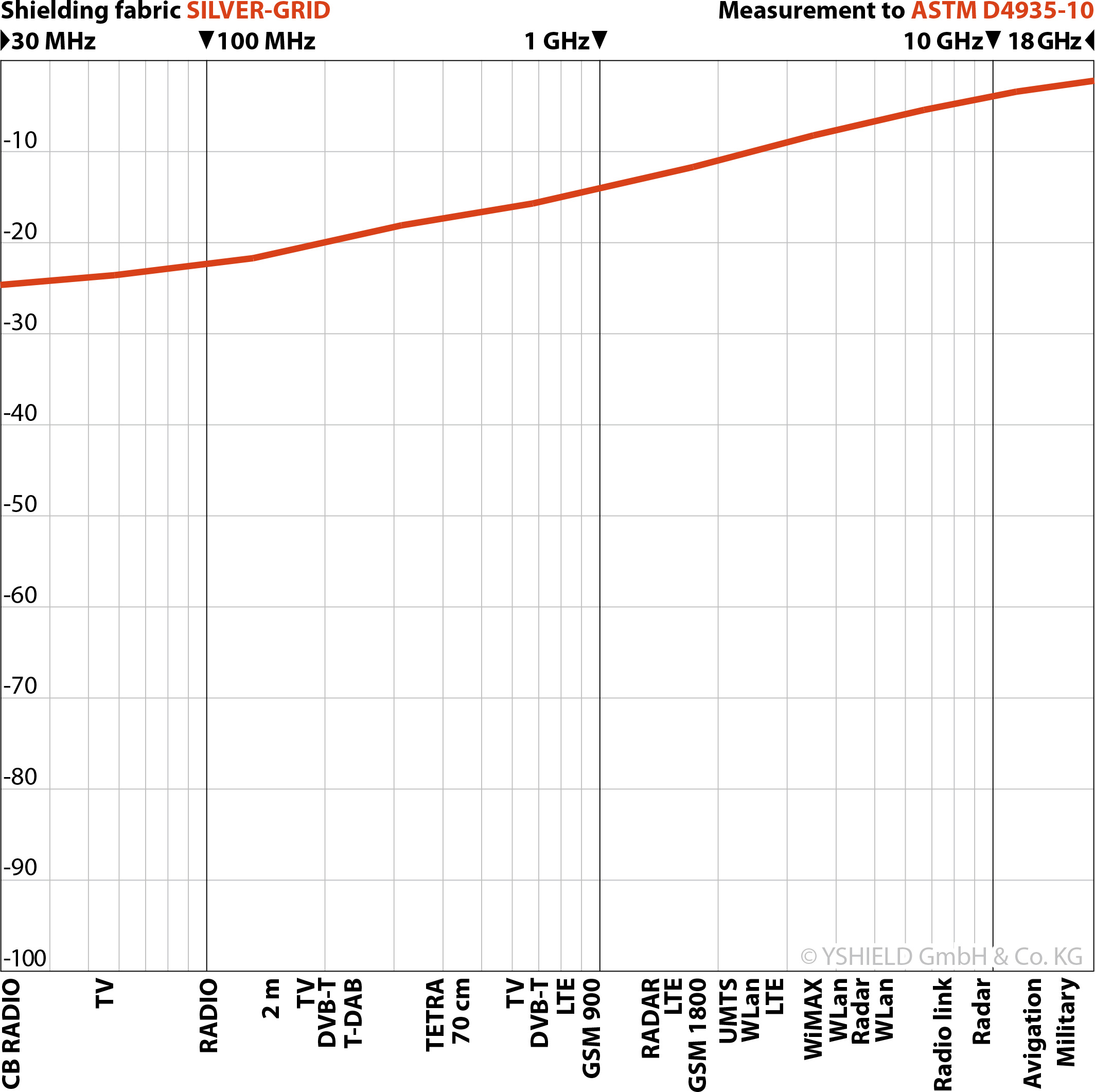

Attenuation HF: 13 dB - Color: White
- Raw materials: 95 % cotton, 4 % polyester, 1 % silver
- Weight: 130 g/m²
- Conductivity: 15 ohm / 100 cm
